EUREF Permanent GNSS Network

Station Configuration

RESPONSIBLE AGENCY	BKG (Bundesamt fuer Kartographie und Geodaesie)
RESPONSIBLE FOR METADATA	BKG (Bundesamt fuer Kartographie und Geodaesie)
CURRENT STATION CONFIGURATION	wtzr00deu_20231030.log
STATUS IN EPN	included since 31-12-1995
DATA LICENSE	CC-BY-4.0
LAST AVAILABLE DATA	29-11-2024
LAST RECEIVER	LEICA GR50 (18-05-2021 to now)
SET TO TRACK	GPS+GLO+GAL+BDS+IRNSS+SBAS
LAST ANTENNA	LEIAR25.R3/LEIT (30-06-2010 to now)
INDIVIDUAL CALIBRATION(S)	AOAD/M_T/NONE (SN: 404) from 2002-07-02 to 2009-01-19 : GEO - ROBOT (freq: G01, G02, date: 2000-05-28) LEIAR25/LEIT (SN: 08430019) from 2009-01-19 to 2010-06-30 : GEO - ROBOT (freq: G01, G02, R01, R02, date: 2008-12-01) LEIAR25.R3/LEIT (SN: 10020031) from 2010-06-30 to now : GEO - ROBOT (freq: G01, G02, R01, R02, date: 2010-04-29)
DATA ROUTINELY ANALYSED BY	ASI, BKG, COD, NKG, ROB, WUT
INCLUSION IN OTHER NETWORK(S)	EPOS

Data Provided

The RINEX 2 data are no more submitted to the EPN data centres since 10-11-2020.

No recent data available

Recent RINEX file errors detected by BKG data centre: web page

BKG upload settings to other data centres.

WTZR00DEU0 :

ASI (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM5)
2024/11/30 20:16 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt site log (GPS+GLO+GAL+BDS+SBAS)
2024/11/30 20:16 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt source table (GPS+GLO)
2024/11/30 20:16 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (4.50.274) wrt site log (4.50/7.710)
2024/11/30 20:16 RTCM 3.2/1006: Coordinate difference with ETRS89 ( 0.0760 m) exceeds threshold

BKG (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM5)
2024/11/30 17:30 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt site log (GPS+GLO+GAL+BDS+SBAS)
2024/11/30 17:30 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (4.50.274) wrt site log (4.50/7.710)
2024/11/30 17:30 RTCM 3.2/1006: Coordinate difference with ETRS89 ( 0.0760 m) exceeds threshold

ROB (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM5)
2024/11/30 18:55 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt site log (GPS+GLO+GAL+BDS+SBAS)
2024/11/30 18:55 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (4.50.274) wrt site log (4.50/7.710)
2024/11/30 18:55 RTCM 3.2/1006: Coordinate difference with ETRS89 ( 0.0760 m) exceeds threshold

information above extracted from monitor files - https://epncb.oma.be/pub/station/real_time/

RINEX Data Quality

Daily tracking performances

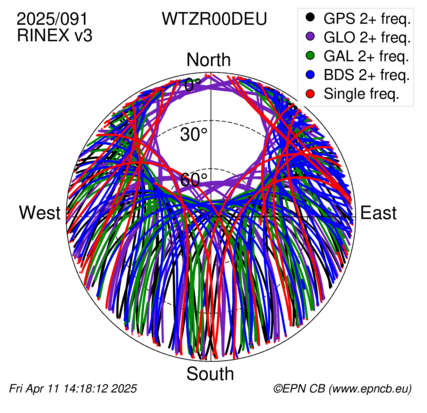

Monthly snapshots of satellite tracking

Position, Velocity & Time Series

EUREF is providing positions and velocities for the station WTZR00DEU
Last ETRF2000 position valid from 185/2010 to 316/2022 expressed at epoch 001/2010
X = 4075580.846 m	Vx = -0.0006 m/y
Y = 931853.569 m	Vy = -0.0002 m/y
Z = 4801567.922 m	Vz = -0.0006 m/y
