EUREF Permanent GNSS Network

Station Configuration

RESPONSIBLE AGENCY	OS (Ordnance Survey)
RESPONSIBLE FOR METADATA	OS (Ordnance Survey)
CURRENT STATION CONFIGURATION	swas00gbr_20240216.log
STATUS IN EPN	included since 12-02-2017
DATA LICENSE	CC-BY-4.0
DIGITAL OBJECT IDENTIFIER (DOI)	https://doi.org/10.24414/ROB-EUREF-SWAS00GBR
LAST AVAILABLE DATA	29-11-2024
LAST RECEIVER	TRIMBLE ALLOY (16-02-2024 to now)
SET TO TRACK	GPS+GLO+GAL+BDS+QZSS
LAST ANTENNA	LEIAR25/LEIT (14-08-2009 to now)
INDIVIDUAL CALIBRATION(S)	LEIAR25/LEIT (SN: 08420021) from 2009-08-14 to now : GEO - ROBOT (freq: G01, G02, R01, R02, date: 2008-11-01)
DATA ROUTINELY ANALYSED BY	GFZ, IGE, ROB, UPA
INCLUSION IN OTHER NETWORK(S)	EPOS

Data Provided

The RINEX 2 data are no more submitted to the EPN data centres since 18-02-2021.

No recent data available

Recent RINEX file errors detected by BKG data centre: web page

BKG upload settings to other data centres.

RINEX Data Quality

Daily tracking performances

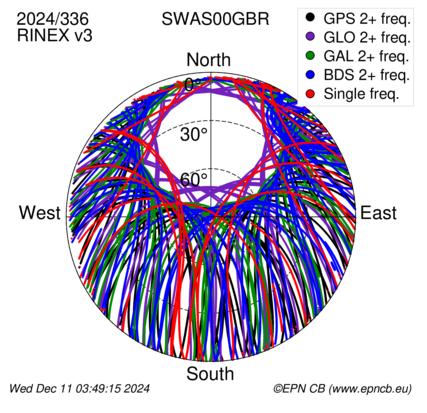

Monthly snapshots of satellite tracking

Position, Velocity & Time Series

EUREF is providing positions and velocities for the station SWAS00GBR
Last ETRF2000 position valid from 037/2021 to 316/2022 expressed at epoch 001/2010
X = 3963403.795 m	Vx = -0.0005 m/y
Y = -275880.927 m	Vy = -0.0001 m/y
Z = 4972970.039 m	Vz = -0.0005 m/y

Position time series

Tropospheric Delays

Zenith Path Delays extracted from weekly EPN troposphere solution (including monthly means)

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution

Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Swansea, United Kingdom Of Great Britain And Northern Ireland (the) (SWAS00GBR)
