EUREF Permanent GNSS Network

Station Configuration

RESPONSIBLE AGENCY	ACT (Administration du cadastre et de la topographie)
RESPONSIBLE FOR METADATA	ACT (Administration du cadastre et de la topographie)
CURRENT STATION CONFIGURATION	ech200lux_20250312.log
STATUS IN EPN	proposed since 26-01-2025
DATA LICENSE	CC-BY-4.0
LAST AVAILABLE DATA	16-04-2025
LAST RECEIVER	LEICA GR30 (13-02-2025 to now)
SET TO TRACK	GPS+GLO+GAL+BDS
LAST ANTENNA	LEIAR25.R4/LEIT (02-10-2019 to now)
INDIVIDUAL CALIBRATION(S)	none
DATA ROUTINELY ANALYSED BY	BEK, BKG, IGN, ROB
INCLUSION IN OTHER NETWORK(S)	EPOS

Data Provided

The RINEX 2 data are no more submitted to the EPN data centres since 27-01-2025.

Data centres	Online	Last data	Availability	Download
EPNCB (historical)		135/2020	N/A

No recent data available

Recent RINEX file errors detected by BKG data centre: web page

BKG upload settings to other data centres.

ECH200LUX0 :

ASI (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM5)
2025/04/17 12:14 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (4.82) wrt site log (4.82/7.900)

BKG (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM5)
2025/04/17 08:59 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (4.82) wrt site log (4.82/7.900)

ROB (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM5)
2025/04/17 10:22 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (4.82) wrt site log (4.82/7.900)

information above extracted from monitor files - https://epncb.oma.be/pub/station/real_time/

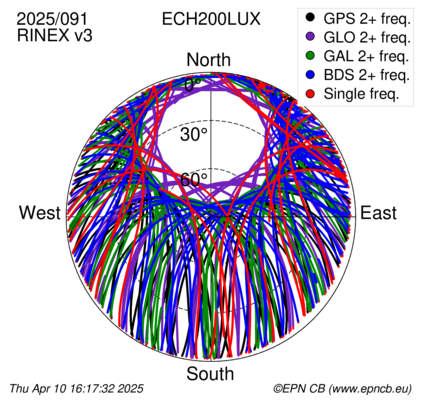

RINEX Data Quality
